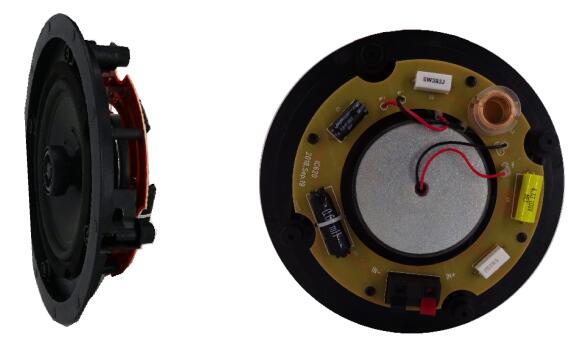

8" thin 70mm & 6.5" thin 70mm & 4" thin 65mm Thinner, less affected by ceiling depth For the
-
8" thin 70mm & 6.5" thin 70mm & 4" thin 65mm Thinner, less affected by ceiling depth
For the convenience of user space, design a thin ceiling speaker, not only thinner, but also more vivid!!
IC-820
IC-620
IC-420
LF Unit
8 inch * 1
6.5 inch * 1
4 inch * 1
HF Driver
3/4 inch * 1
3/4 inch * 1
1/2 inch * 1
Impedance(AC)
8Ω
8Ω
8Ω
Output SPL
85±3dB
86±3dB
83±3dB
Resonant Freq.(FO)
59±20Hz
72±20Hz
126±20Hz
Freq. Range
FO~20KHz±3dB
FO~20KHz±3dB
FO~20KHz±3dB
Rated Input Power
40W
30W
20W
Max Input Power
80W
60W
40W
Dimension(H*W*D)
70*268*268mm
70*233*233mm
70*180*180mm
Net Weight
1.2kg
1.1kg
0.74kg
Attachment
Low-prfile grill
Low-prfile grill
Low-prfile grill
8" thin 70mm & 6.5" thin 70mm & 4" thin 65mm Thinner, less affected by ceiling depth
For the convenience of user space, design a thin ceiling speaker, not only thinner, but also more vivid!!
IC-820 | IC-620 | IC-420 | |
LF Unit | 8 inch * 1 | 6.5 inch * 1 | 4 inch * 1 |
HF Driver | 3/4 inch * 1 | 3/4 inch * 1 | 1/2 inch * 1 |
Impedance(AC) | 8Ω | 8Ω | 8Ω |
Output SPL | 85±3dB | 86±3dB | 83±3dB |
Resonant Freq.(FO) | 59±20Hz | 72±20Hz | 126±20Hz |
Freq. Range | FO~20KHz±3dB | FO~20KHz±3dB | FO~20KHz±3dB |
Rated Input Power | 40W | 30W | 20W |
Max Input Power | 80W | 60W | 40W |
Dimension(H*W*D) | 70*268*268mm | 70*233*233mm | 70*180*180mm |
Net Weight | 1.2kg | 1.1kg | 0.74kg |
Attachment | Low-prfile grill | Low-prfile grill | Low-prfile grill |
