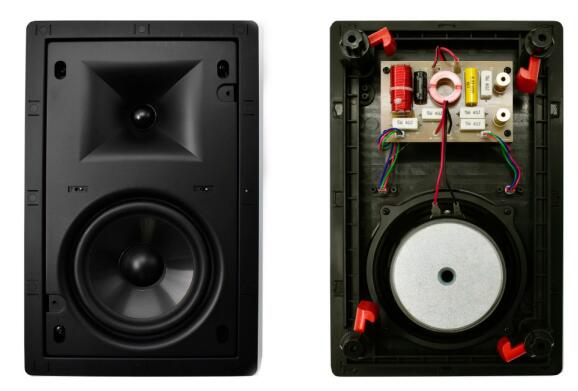

The IW-620/820 itself has a tweeter made of silk, which can be made into a titanium tweeter for customer needs. velc
-
The IW-620/820 itself has a tweeter made of silk, which can be made into a titanium tweeter for customer needs. velcor can help customers pick up the screw lock!!
IW-620
IW-820
Tweeter
1" (25 mm) Titanium soft dome
1" (25 mm) Titanium soft dome
Woofer
6.5" (165 mm) Graphite Cone, Rubber Surround
8" (203 mm) Graphite Cone, Rubber Surround
Frequency Range+/-3
46 Hz -20k Hz
40 Hz -20k Hz
Power Handing RMS
80 W program , 40 W ( IEEE 219 )
100 W program , 50 W ( IEEE 219 )
Sensitivity
85 dB
85 dB
Taps
N/A
N/A
Impedance
8 ohms
8 ohms
Termination
Standard pressed connector
Standard pressed connector
Included Accessories
Cuout template grille
Cuout template grille
Dimensions
14.21" x 9.17" x 3.93" (361mm x 233mm x 100mm)
15.75" x 10.35" x 3.93" (400mm x 263mm x100mm )
Cut out diameter
12.99" x 7.95" (330mm x 202mm )
14.72" x 9.11" (374mm x 231.5mm )
Certifications
N/A
N/A
The IW-620/820 itself has a tweeter made of silk, which can be made into a titanium tweeter for customer needs. velcor can help customers pick up the screw lock!!
IW-620 | IW-820 | |
Tweeter | 1" (25 mm) Titanium soft dome | 1" (25 mm) Titanium soft dome |
Woofer | 6.5" (165 mm) Graphite Cone, Rubber Surround | 8" (203 mm) Graphite Cone, Rubber Surround |
Frequency Range+/-3 | 46 Hz -20k Hz | 40 Hz -20k Hz |
Power Handing RMS | 80 W program , 40 W ( IEEE 219 ) | 100 W program , 50 W ( IEEE 219 ) |
Sensitivity | 85 dB | 85 dB |
Taps | N/A | N/A |
Impedance | 8 ohms | 8 ohms |
Termination | Standard pressed connector | Standard pressed connector |
Included Accessories | Cuout template grille | Cuout template grille |
Dimensions | 14.21" x 9.17" x 3.93" (361mm x 233mm x 100mm) | 15.75" x 10.35" x 3.93" (400mm x 263mm x100mm ) |
Cut out diameter | 12.99" x 7.95" (330mm x 202mm ) | 14.72" x 9.11" (374mm x 231.5mm ) |
Certifications | N/A | N/A |
